FC32

All metal structure

Hot transfer printing

53/32mm(300dpi)

53/32mm * 75mm (intermittent); 53/32mm * 100mm (continuous)

300 dpi(12 dots/mm)

40-600 mm/s

32-bit RSIC processor

Minimum 8MB

Minimum 16 MB

STD、 The battery has a discharge life of at least 3 years

Color band tension detection; Hot write head position detection; Open lid detection; Hot write head overheating detection; Carbon ribbon fracture detection

Electromagnetic induction or synchronizer

PVDC、 PET、 PE、NY、 CPP、 OPP、 BOPP、BOPET、BOPA、 CPP、PE、VMPET、VMCPP Various types of thin films and composite films

1 "core shaft with a maximum length of 1100 meters

Type: Mixed base/resin; Width: 20 mm (0.79 ") to 55 mm (2.17")

Supports interleaved、 radial、 multiple printing signals、 digital ribbon saving printing、 ribbon retraction、 and other energy-saving ribbon modes. The minimum ribbon spacing between two lines of printing is no more than 0.5 mm

Maximum 6 bar/90 psi

As low as 4 ml/print at 2.5 bar

31st order

STD1 port、 B-type connector、 USB device 2.0

STD1USB Disk Connection Port USB Host 2.0、 Automatic Connection Detection and Settings

STD1 port、 female D-SUB 9-pin connector default 9600、 8/N/1、 variable baud rate and format

STD1 port、 RJ-45 connector IEEE802.3 10/100BASE-

Input: "Print start" and 1 configurable input; Output: Fault、 Warning、 and 2 configurable outputs

Internal switch power module、 I/P: AC90 V-264 V、 47/63 Hz; 150 VA

HPRT Format Editor

CCC

Operation: 0 to 40 ° C @

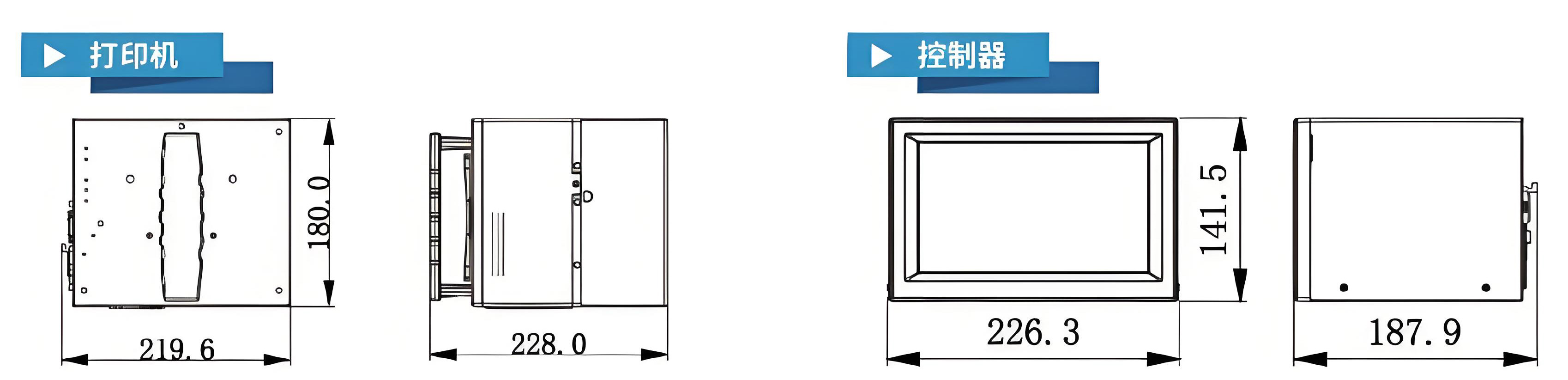

Printing device: height less than 190mm、 width less than 220mm、 depth less than 236mm; controller: height less than 170mm、 width less than 263mm、 depth less than 190mm

ess than 8 kg; Controller: Less than 5 kg
