Laser Printer

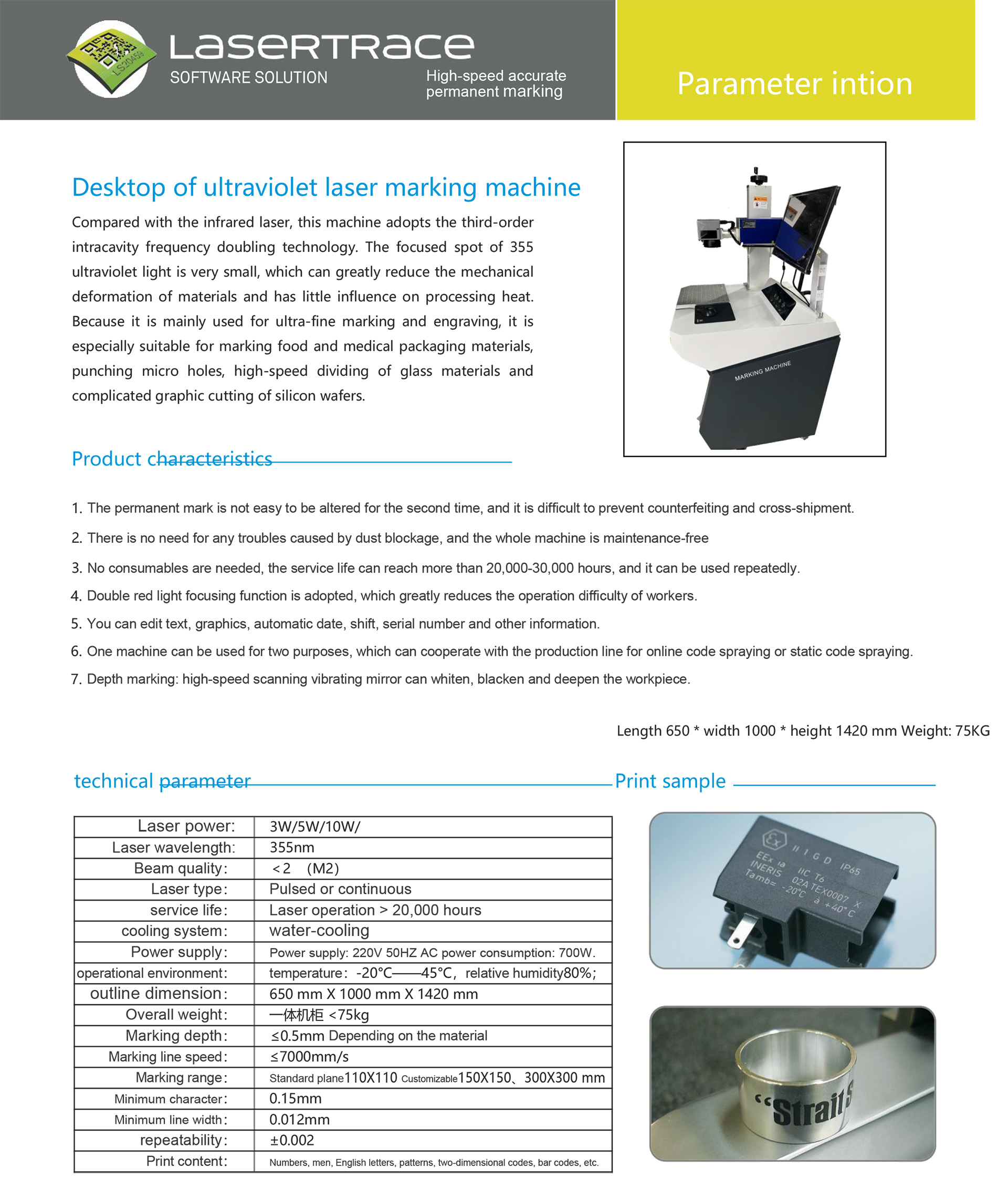

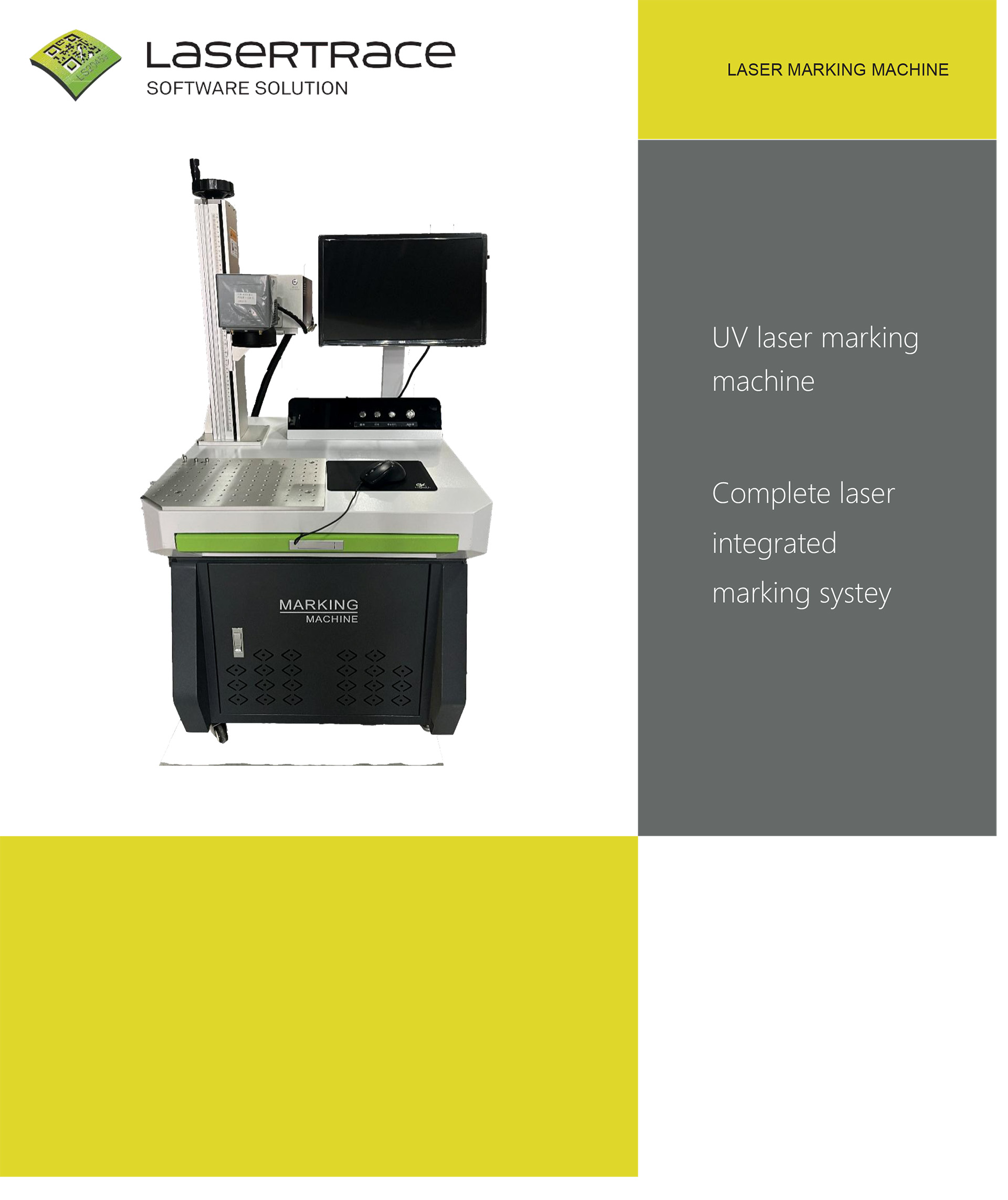

UV static laser marking machine
Performance
Detailed

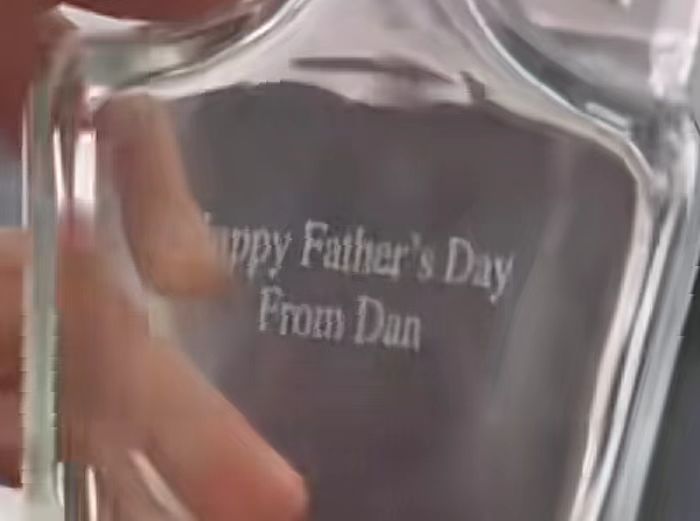

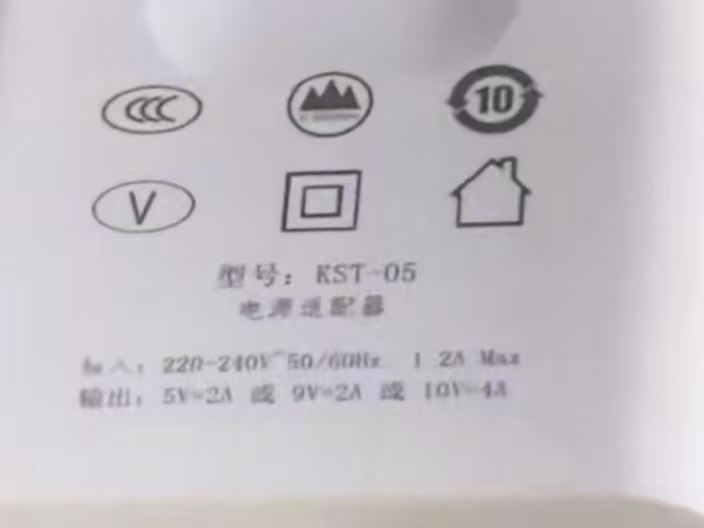

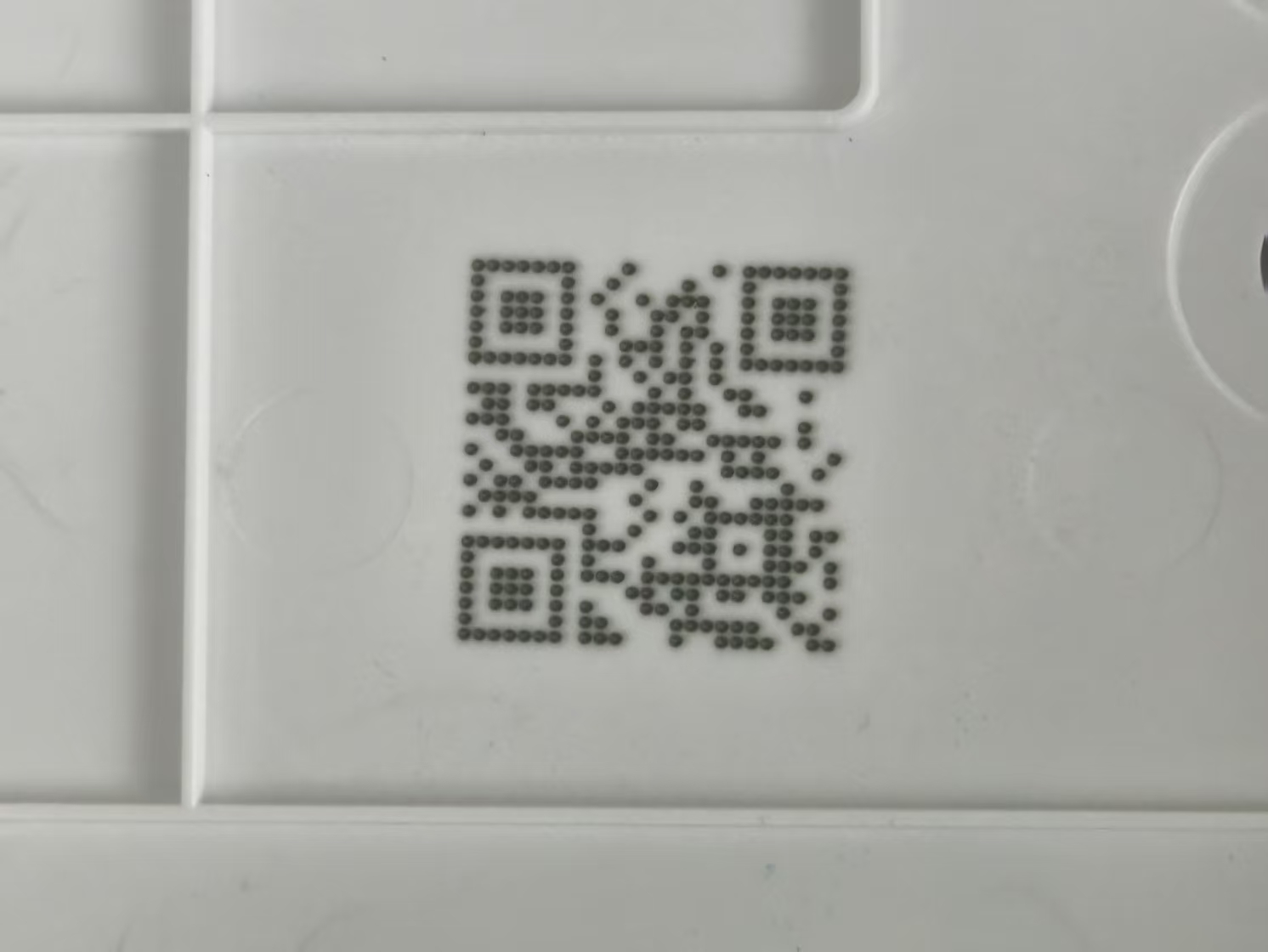

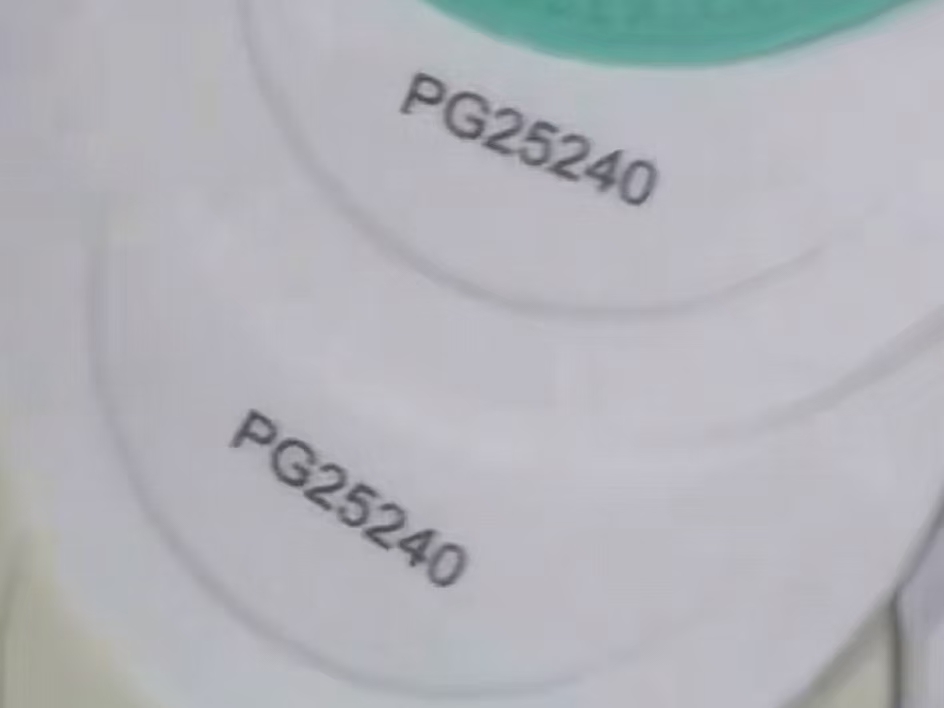

Sample
Download
Laser power:
20W/30W/50W/100W/200W/300W
Laser wavelength:
1064nm
Beam quality：
＜2 （M2）
Laser type：
Pulsed or continuous
service life：
Laser operation > 100、000 hours
cooling system：
water-cooling
Power supply: 220V 50HZ AC power consumption:
700W
operational environment：
temperature：-20°C——45°C，relative humidity80%；

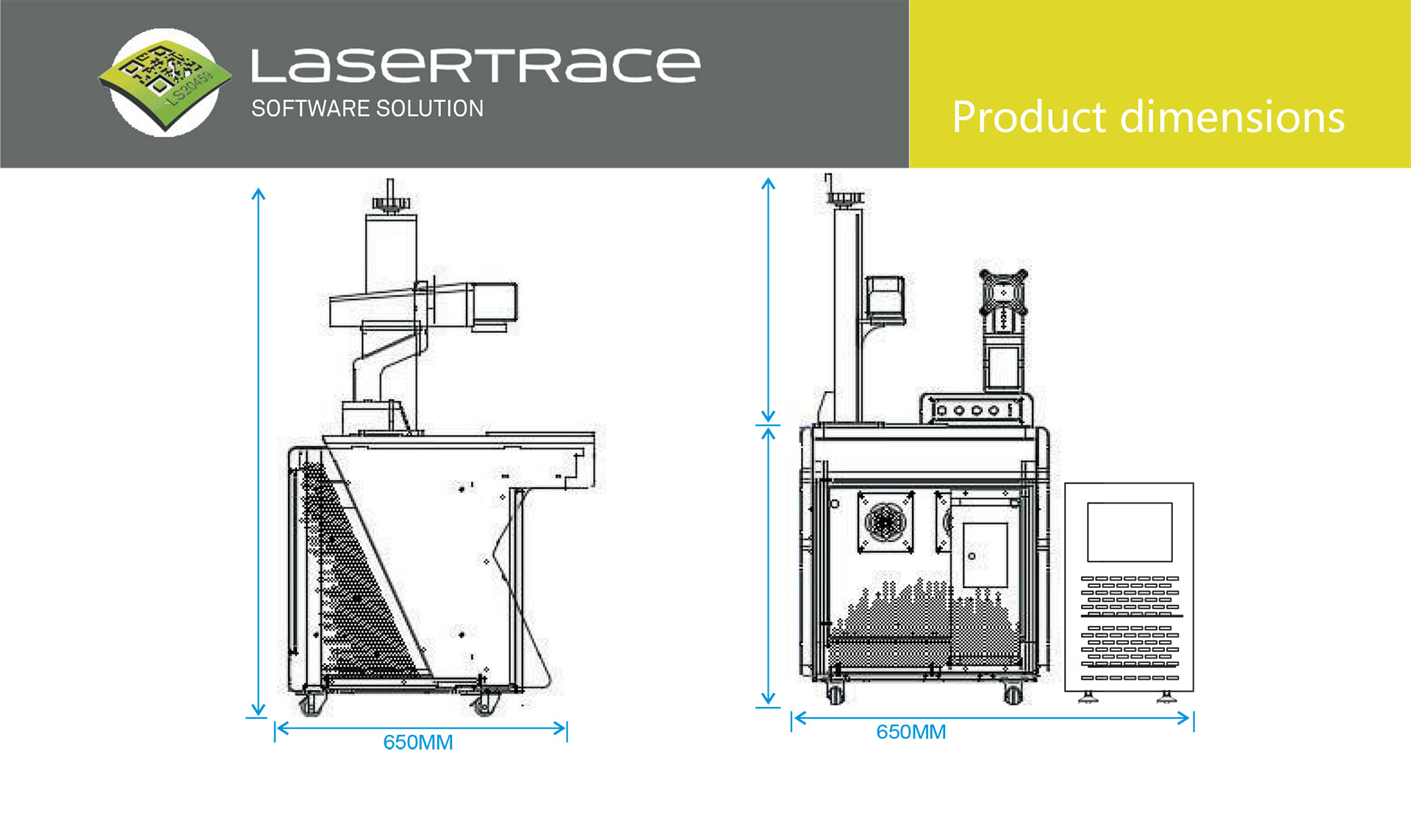

outline dimension：
650 mm X 1000 mm X 1420 mm
Overall weight：
Integrated cabinet<75kg
Marking depth：
≤0.5mm Depending on the material
Marking line speed：
≤7000mm/s
Marking range：
Standard plane110X110 Customizable150X150、300X300 mm
Minimum character：
0.15mm
Minimum line width：
0.012mm
repeatability：
±0.002
Print content：
Numbers、 men、 English letters、 patterns、 two-dimensional codes、 bar codes、 etc
