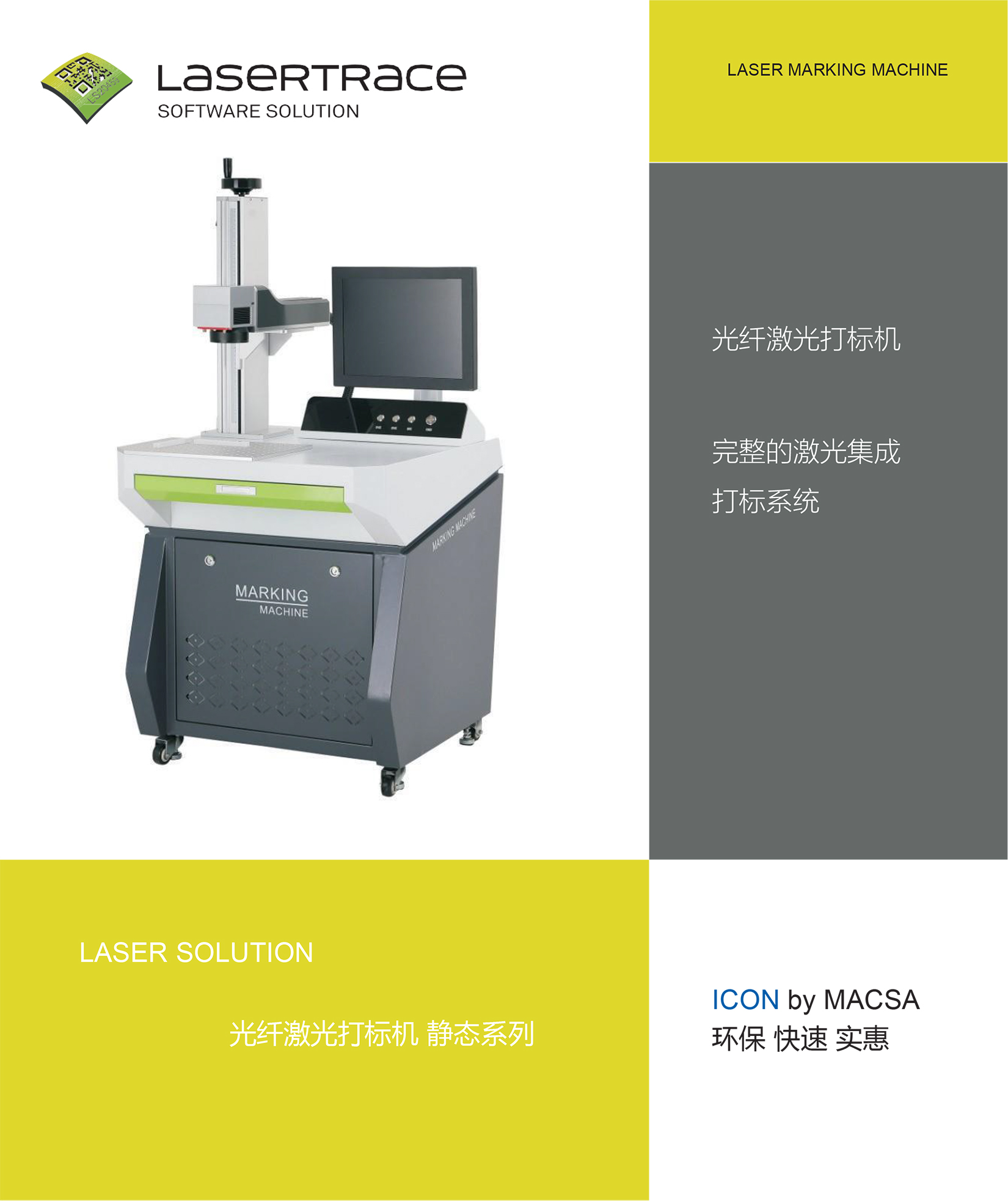

Fiber optic static laser marking machine
Performance
Detailed

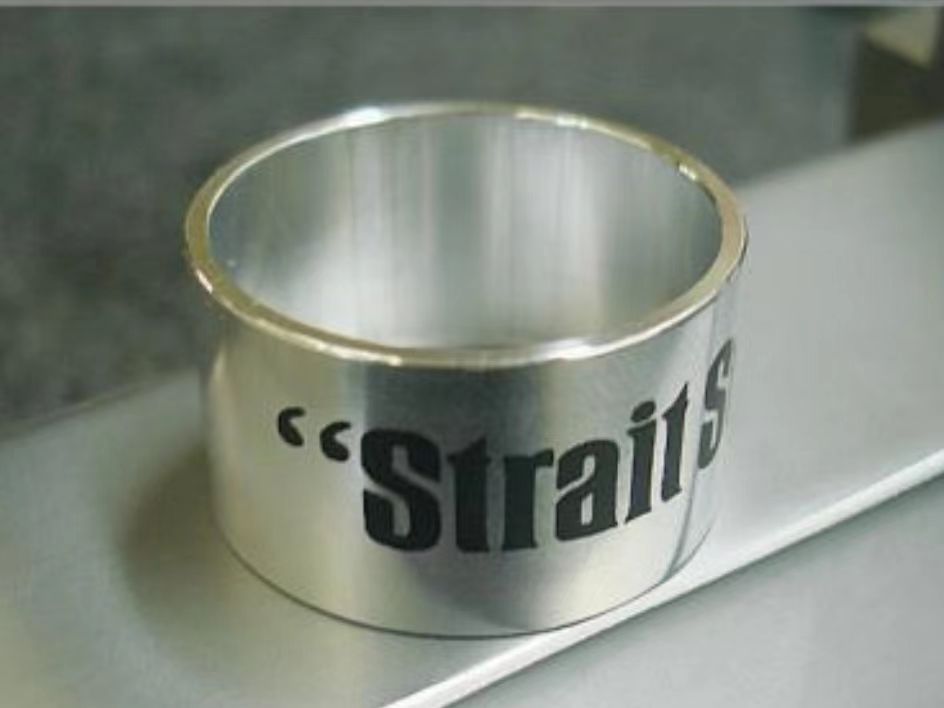

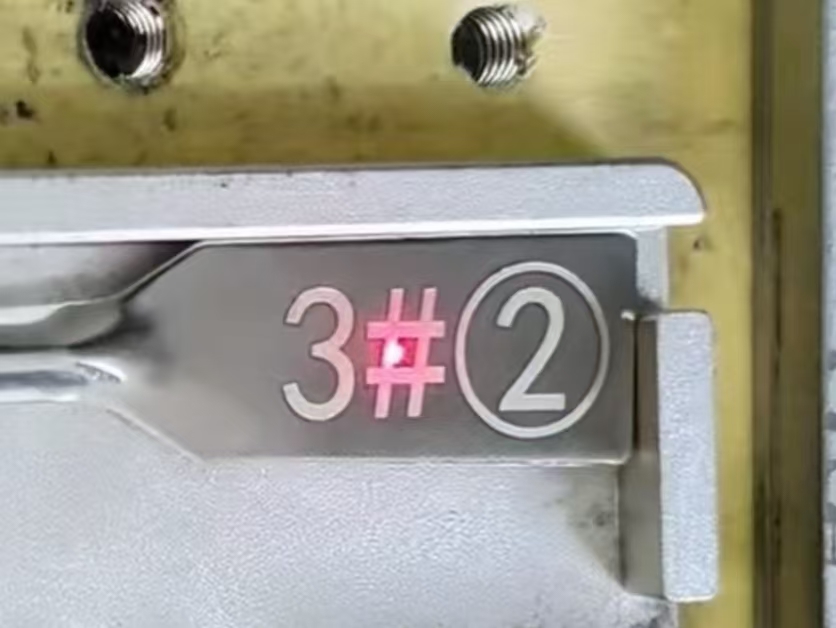

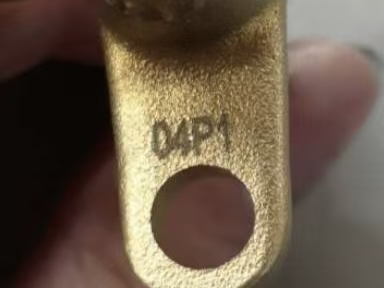

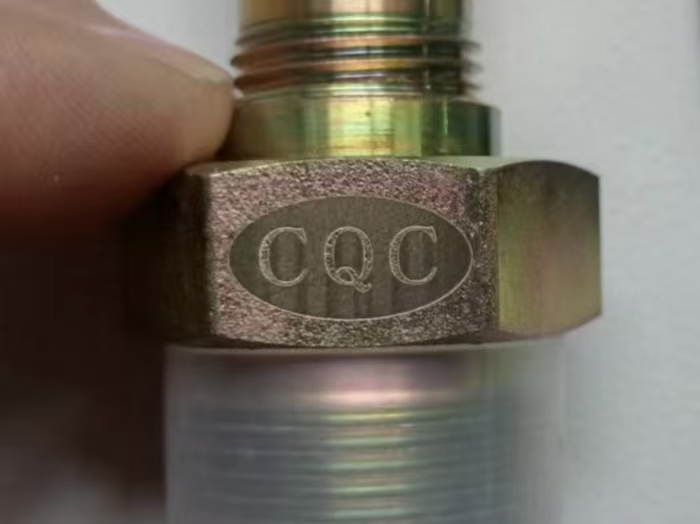

Sample
Download

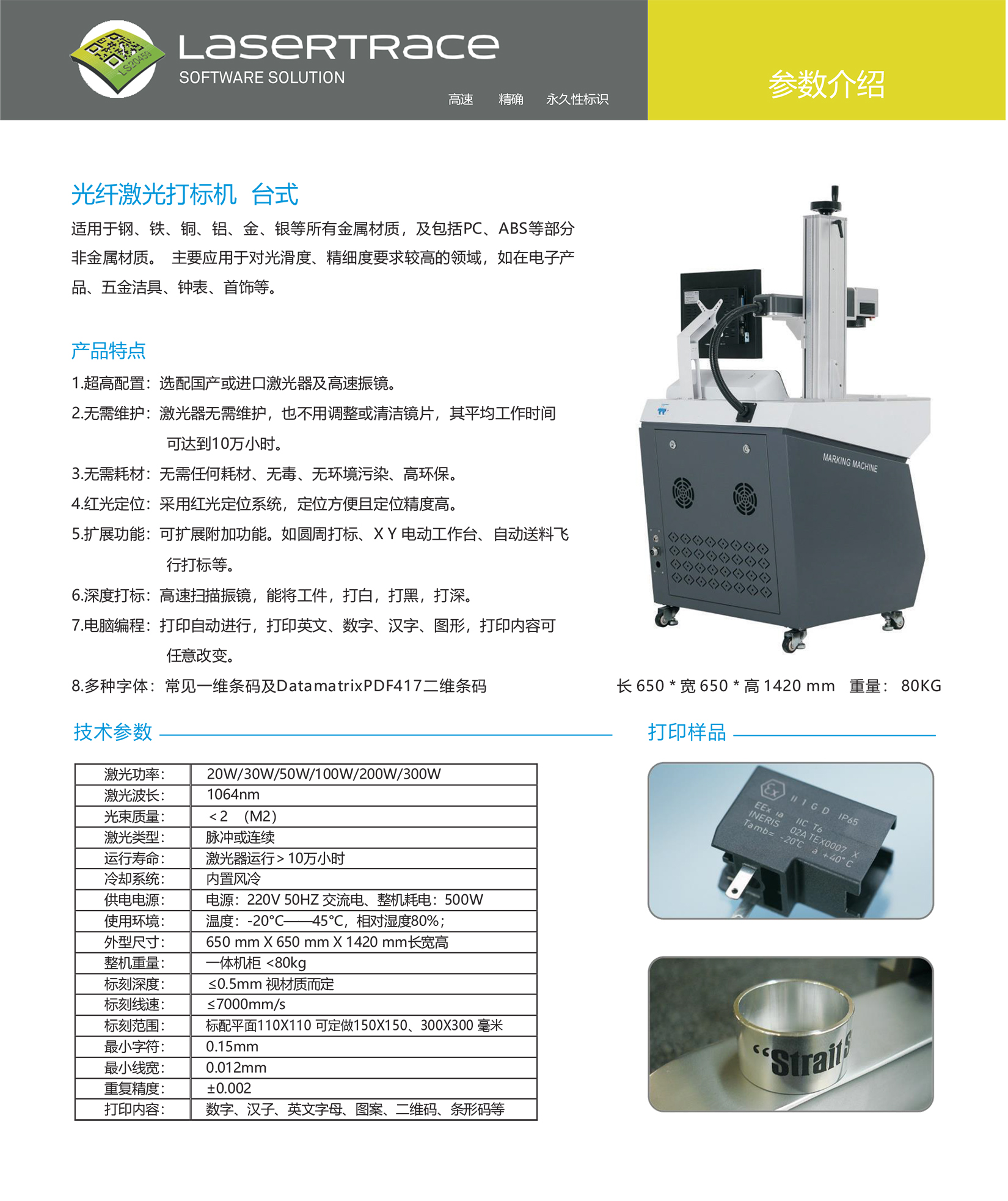

Laser power:
20W/30W/50W/100W/200W/300W
Laser wavelength:
1064nm
Beam quality:
＜2 （M2）
Laser Type:
Pulsed or continuous
Operating life:
Laser operation > 100、000 hours
Cooling system:
Built-in air cooling
Power supply:
220V 50HZ AC、 power consumption
of complete machine:
500W
Use environment:
Temperature: -20 ° C-45 ° C、 relative humidity 80%;

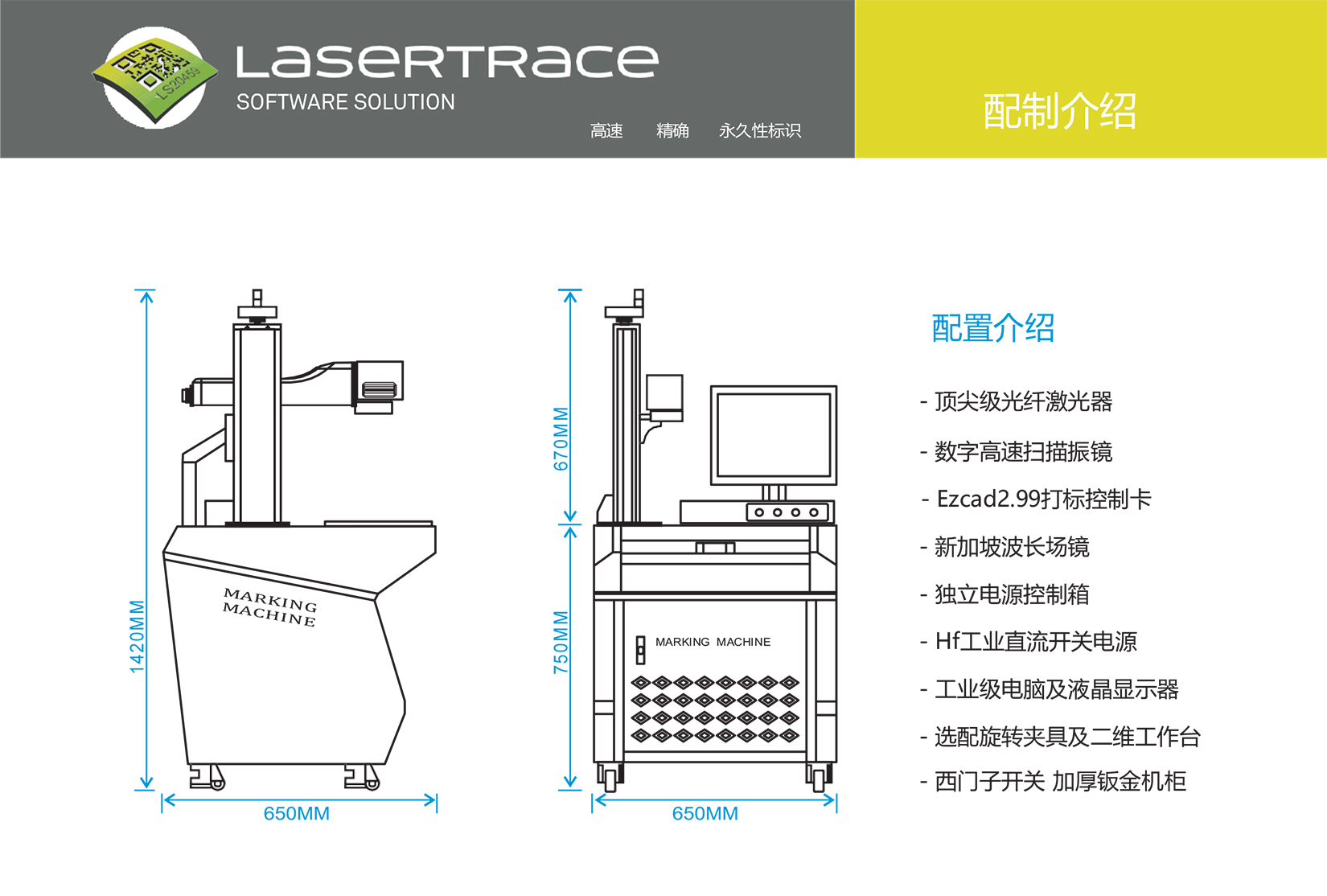

Dimensions:
650 mm X 650 mm X 1420 mm
Weight of complete machine:
Integrated cabinet < 80kg
Marking depth：
≤ 0.5mm depending on the material
Marking line speed：
≤7000mm/s
Marking range：
Standard plane 110X110 can be customized 150X150、 300X300 mm
Minimum characte：
0.15mm
Minimum line width：
0.012mm
Repeatability:
±0.002
Print content：
Numbers、 characters、 English letters、 patterns、
