Laser Printer

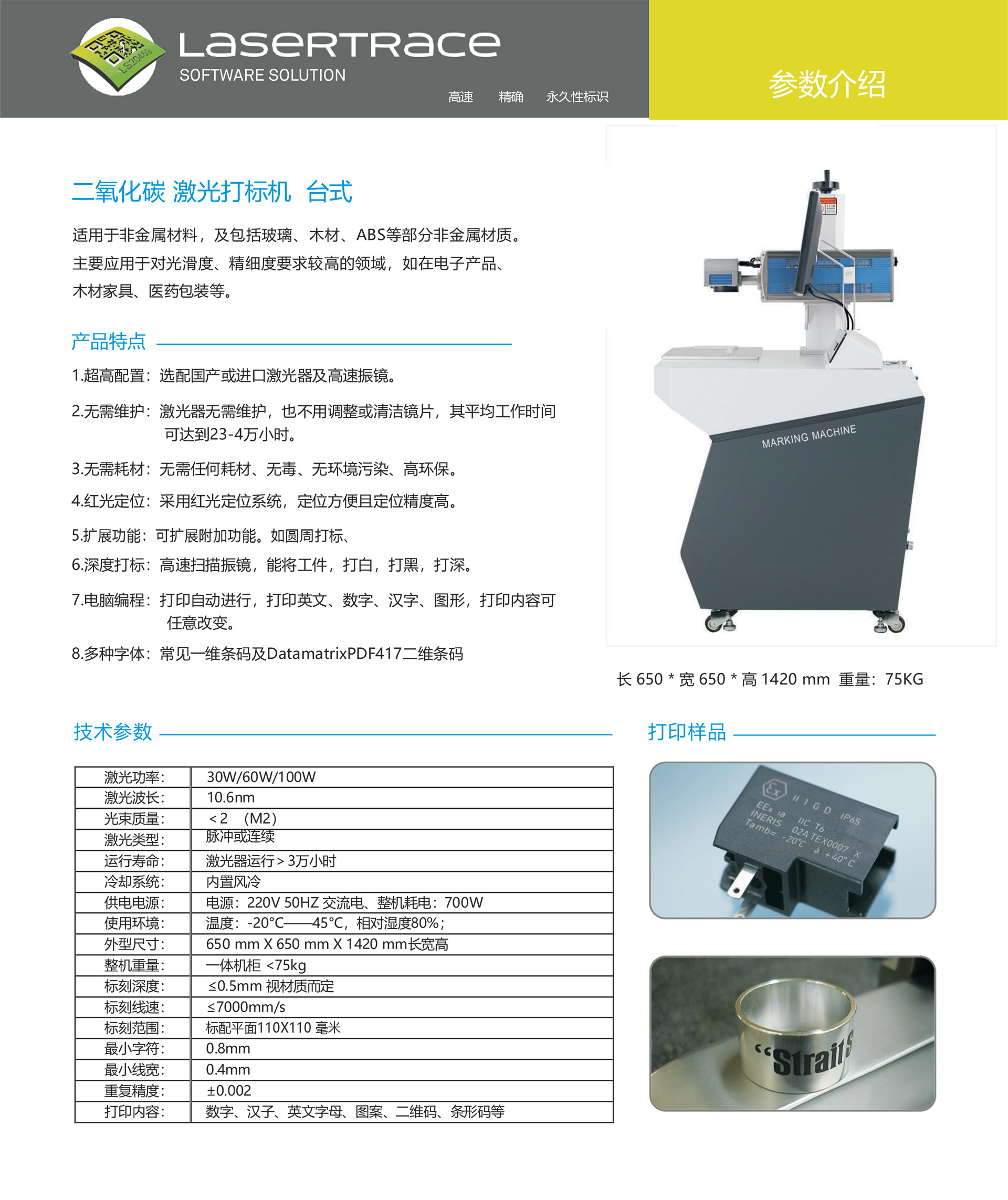

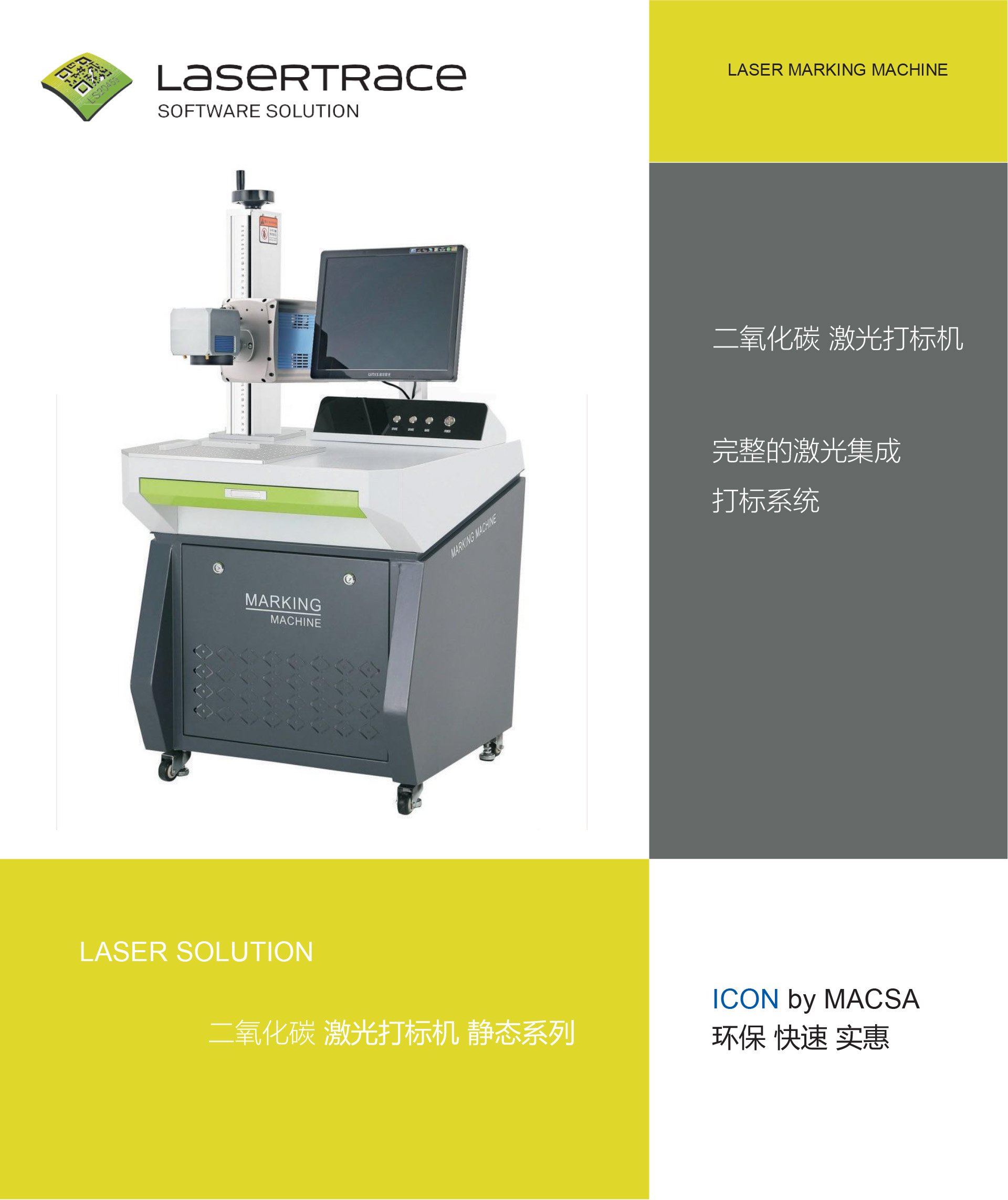

CO ₂ Static Laser Marking Machine
Performance
Detailed
Sample
Download
Laser power:
30W/60W/100W
Laser wavelength:
10.6nm
Beam quality:
＜2 （M2）
Laser type:
Pulse or continuous
Operating lifespan:
Laser operation>30000 hours
Cooling system:
built-in air cooling
Power supply:
220V 50HZ AC、 overall power consumption: 700W
Usage environment:
Temperature: -20 ° C -45 ° C Relative humidity 80%;

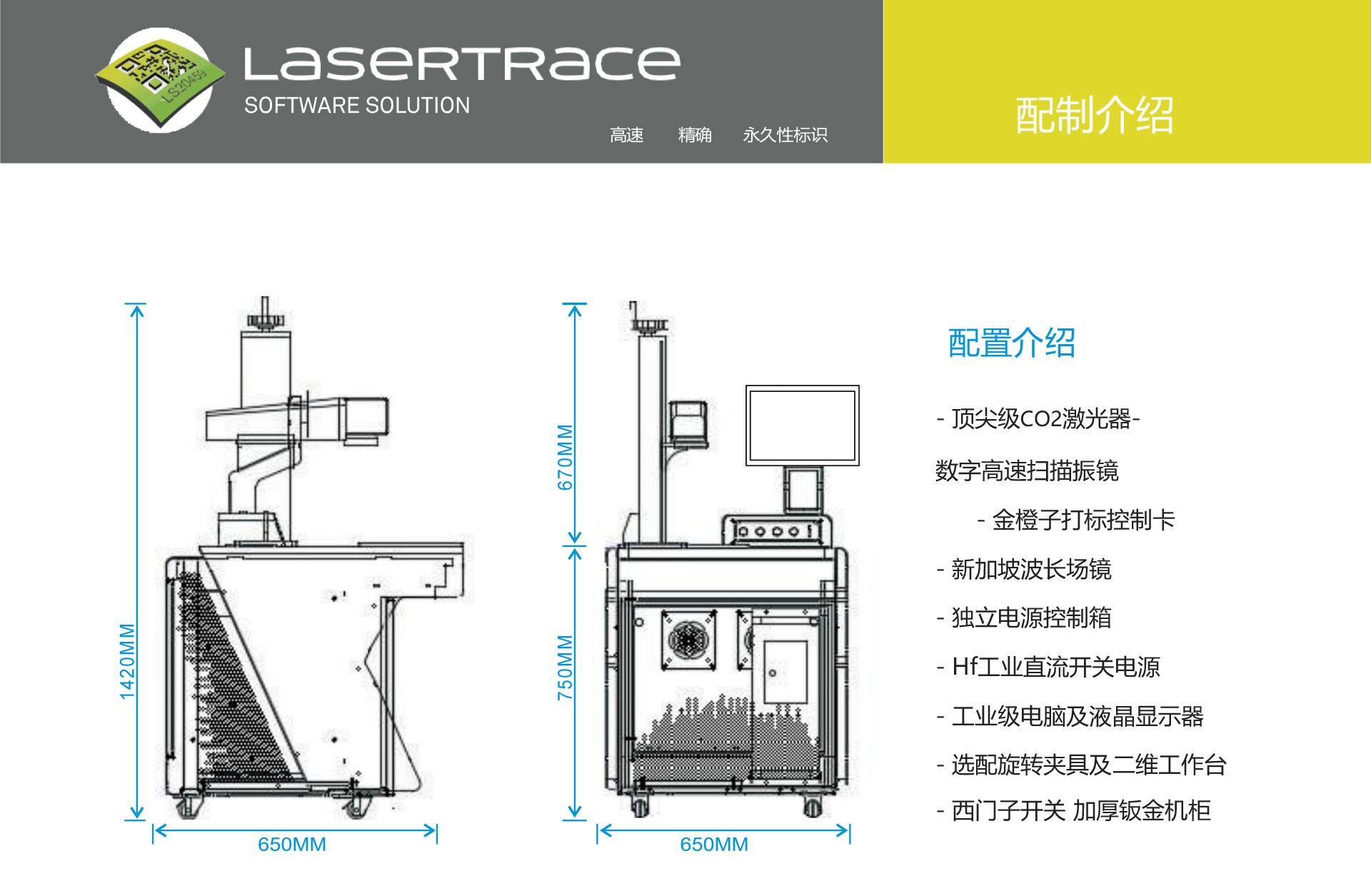

External dimensions:
650 mm X 650 mm X 1420 mm in length、 width、 and height
Whole machine weight:
Integrated cabinet<75kg
Marking depth:
≤ 0.5mm depending on the material
Marking line speed:
≤7000mm/s
Marking range:
Standard flat 110X110mm
Minimum Character:
0.8mm
Minimum line width:
0.4mm
Repetition accuracy:
±0.002
Print content:
Numbers、 Chinese characters、 English letters、 patterns、 QR codes、 barcodes、 etc
