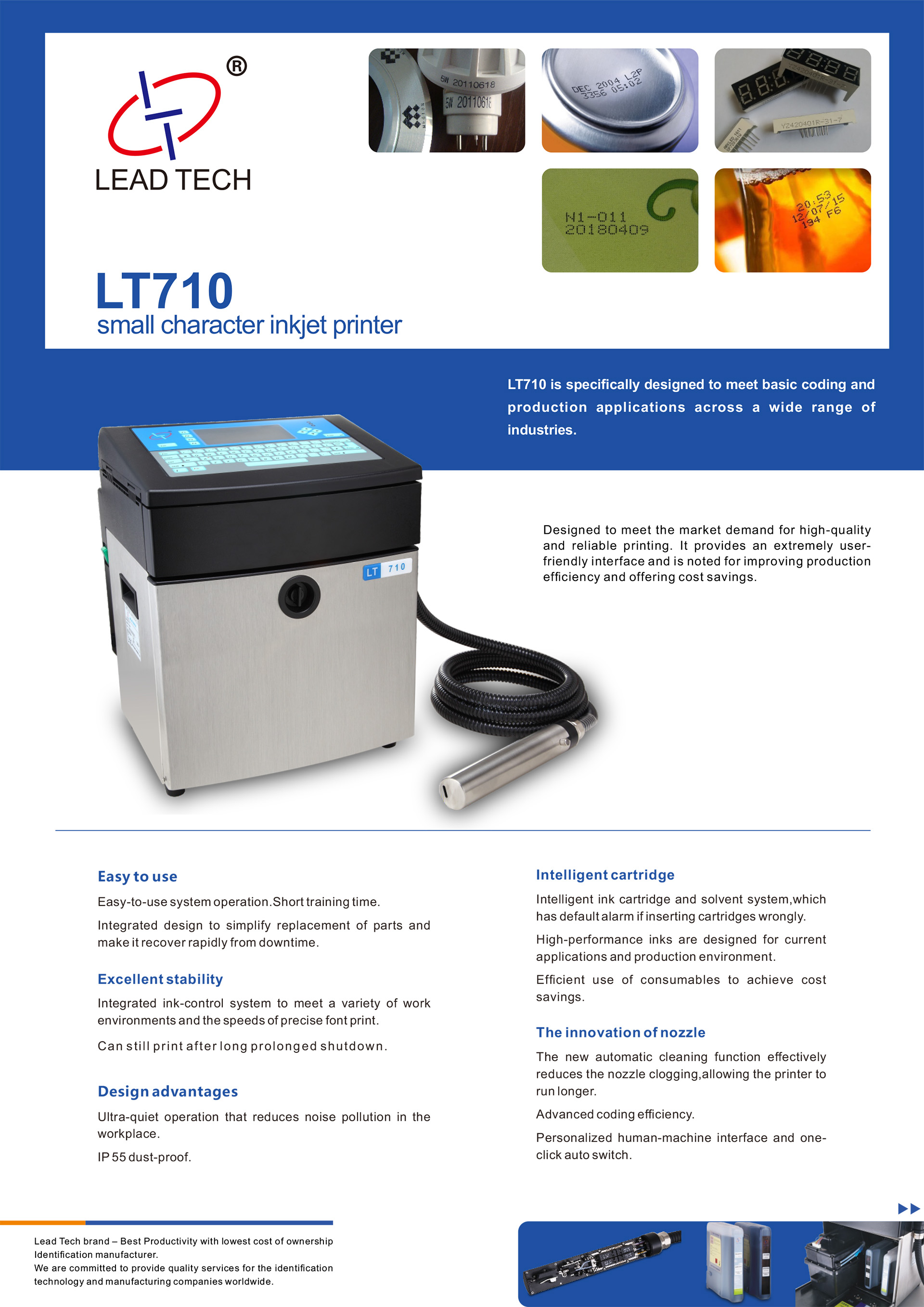

Small Character Inkjet Printer
LT710
Performance
Detailed
Sample
Download

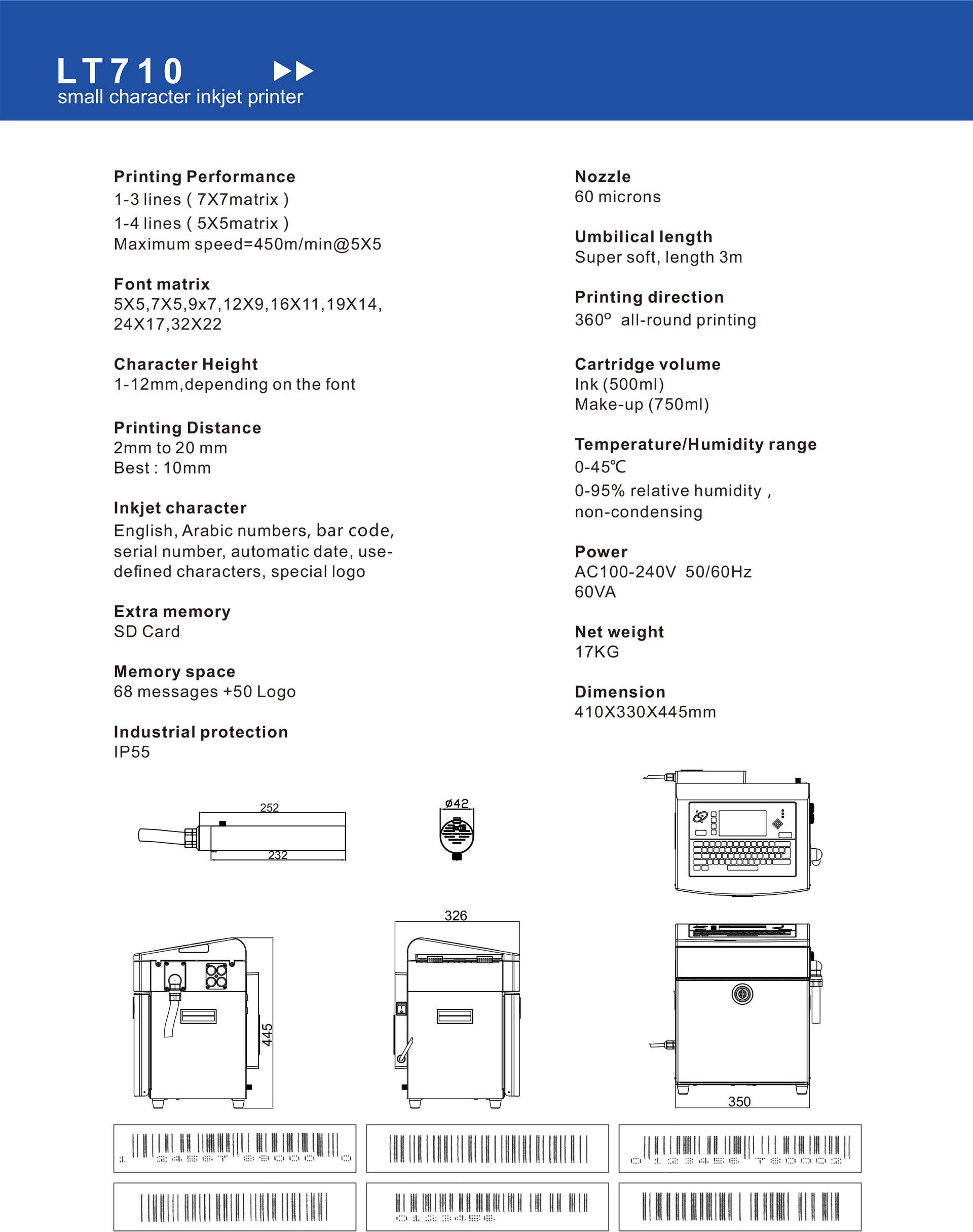

Printing Performance
1-3 lines（7X7matrix）、1-4 lines（5X5matrix）、 Maximum speed=450m/min@5X5
Font matrix
5X5 、7X5 、 9x7 、12X9、 16X12 、19X14 、 24X17 、 中文12X12、中文16X16
Character Height
1-12mm、depending on the font
Printing Distance
2mm to 20 mm Best : 10mm

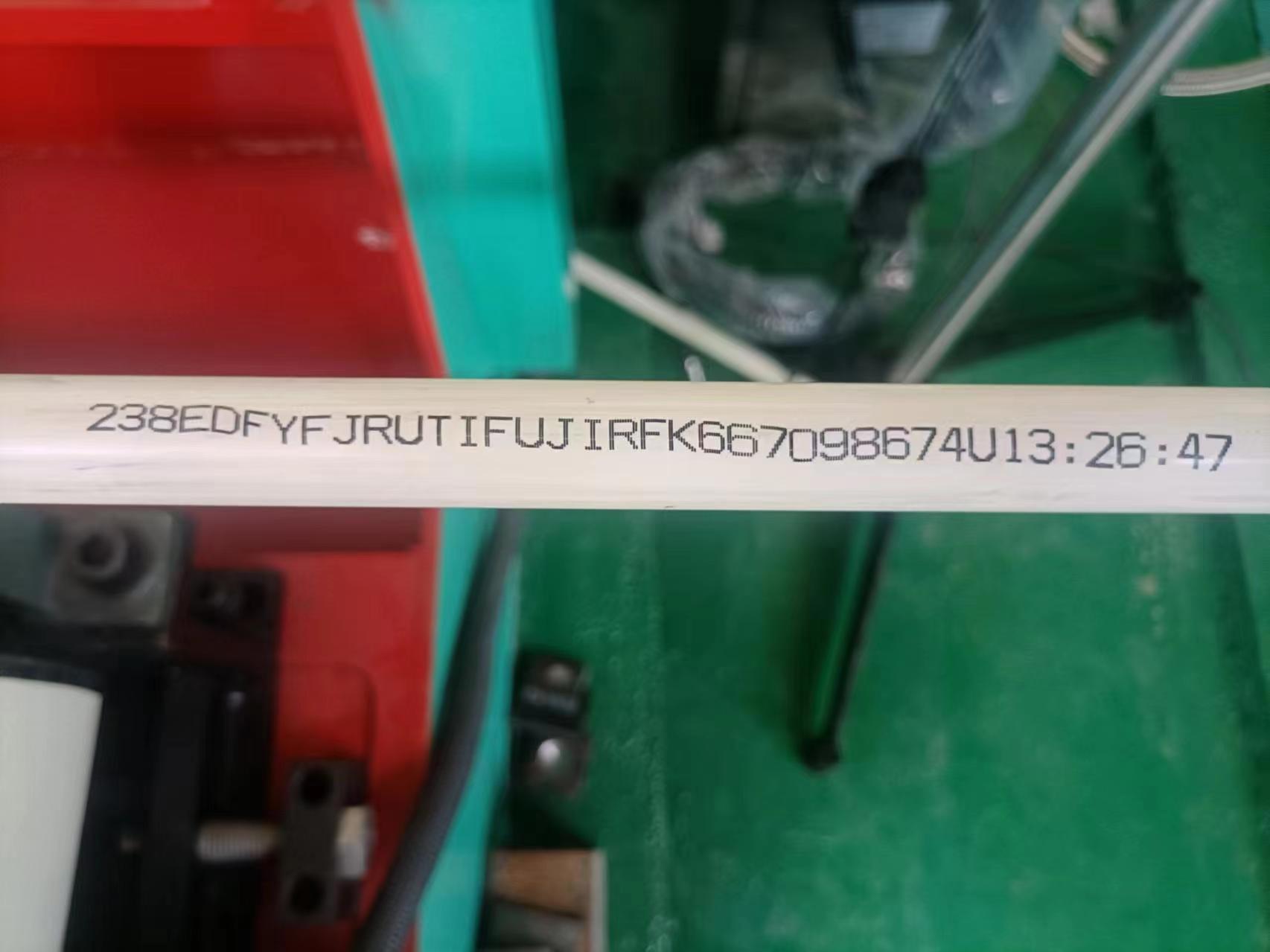

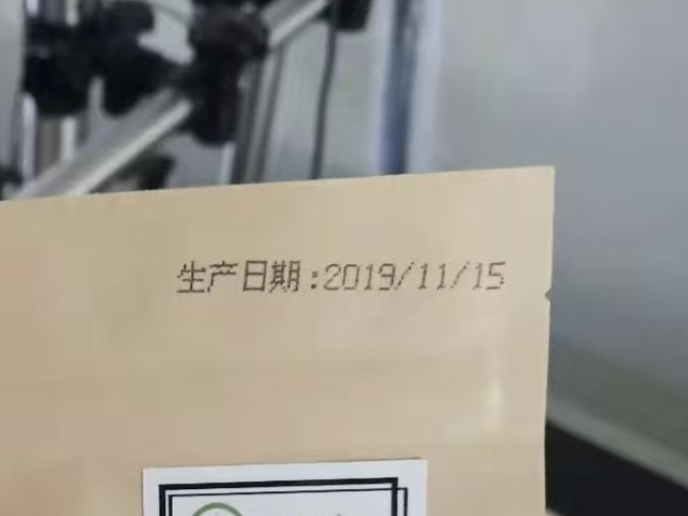

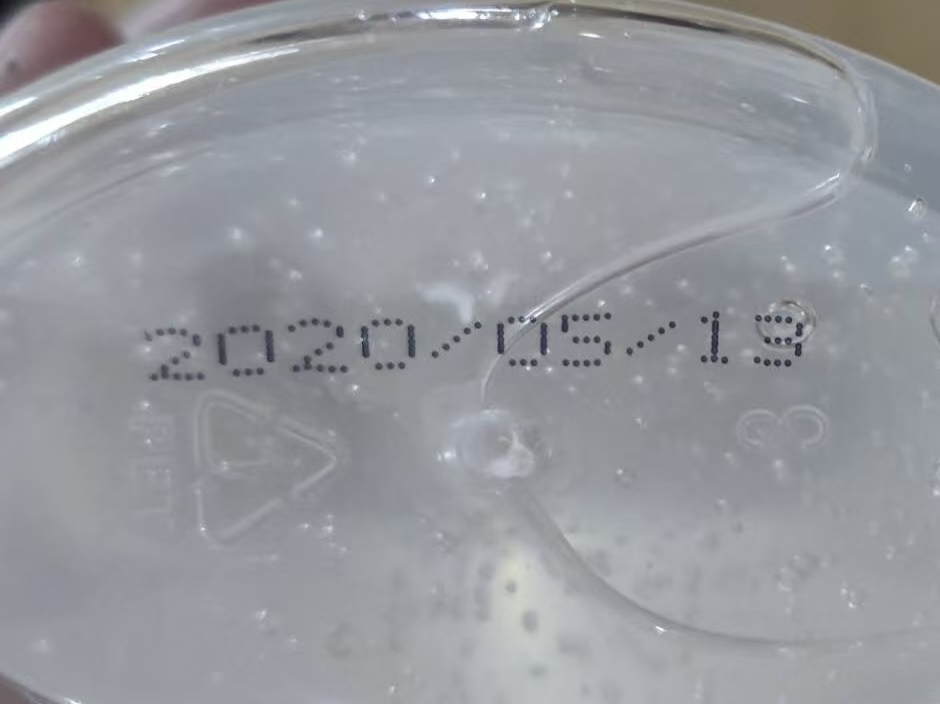

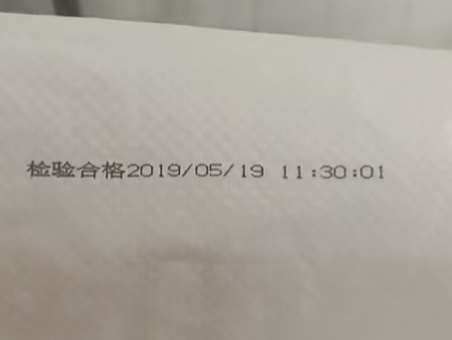

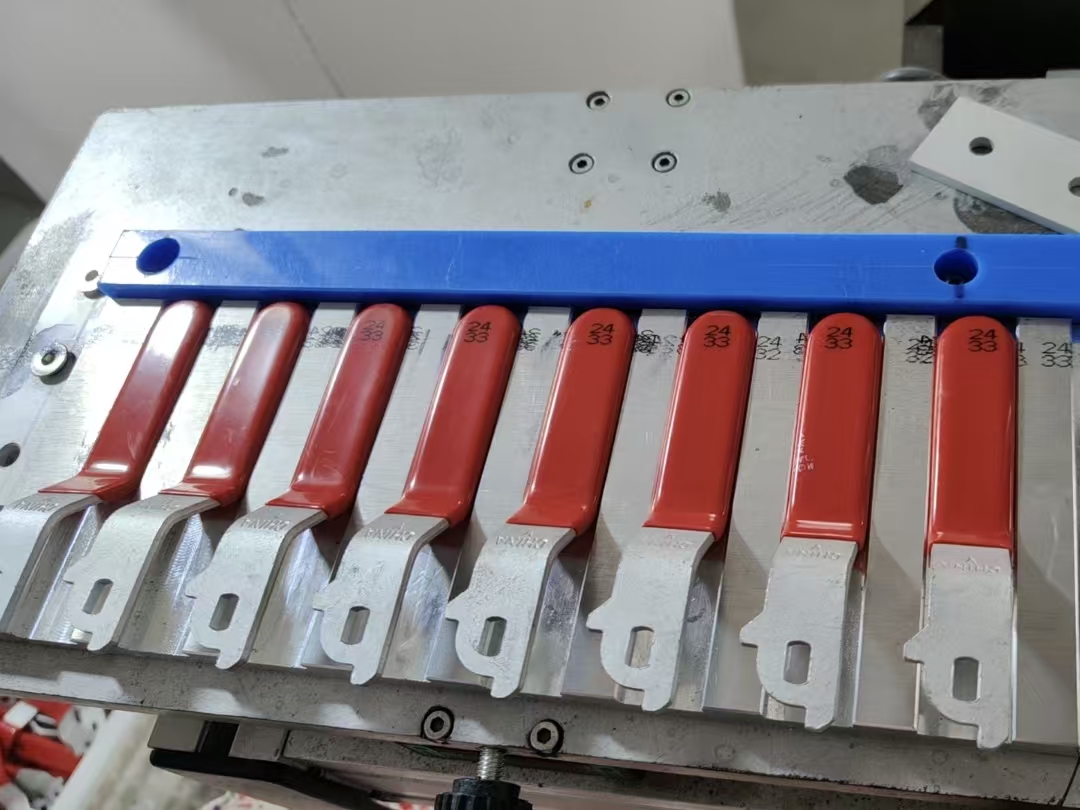

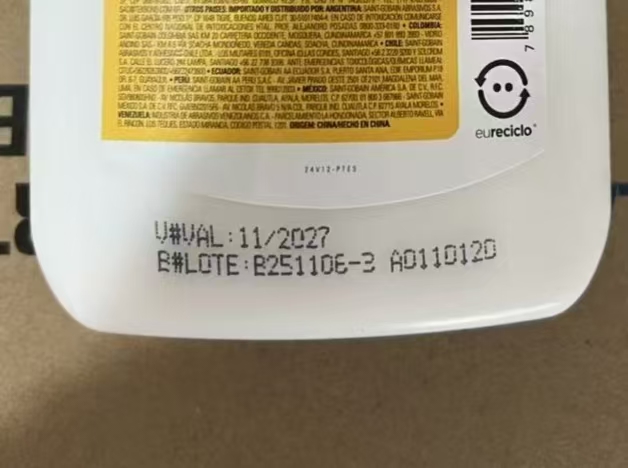

Inkjet character
English、Arabic numbers、 bar code、serial number、automatic date、usedefined characters、special logo
Extra memory
SD Card
Memory space
68 messages +50 Logo
Industrial protection
IP55
Nozzle
60 microns
Umbilical length
Super soft、length 3m
Printing direction
360º all-round printing
Cartridge volume
Ink (500ml)、Make-up (750ml)
Temperature/Humidity range
0-45℃、 0-95% 、relative humidity、 non-condensing
Power
AC100-240V 50/60Hz 60VA
Net weight
17KG
Dimension
410X330X445mm
